Fridge Slide (12)

DIY Slide Tracks & Rails Can’t find just the right size slide for your project? We have the solution!  A Do-It-Yourself slide with seven height adjustments possible. The slide uses a locking/non-locking track rated at up to 500 pounds.  The slide tracks extend 100%.   We supply a pair slide channels and tracks, and you supply the plywood for the cargo to sit on.  You cut the plywood to the custom size of choice to fit your project.   Projects:  Motorhome basement slide.  Odd size width and/or depth project.  Can’t find the exact size?  Use our Slide tracks to make your own custom slide. Choose the length of slide you want from the list, and you do the rest!  The DIY Slide has 7 configurations.  you can adjust the cargo level into seven different heights depending on your needs.  Have a lip or protrusion you need to get over? No problem!  The DIY Slide system can   be adjusted to the following heights: From the bolt down location: 1:            .5” inches as the Lowest setting 2:            1.25” 3:            2” 4:            2.5” 5:            3.25” 6:            4” 7:            4.75”   Not enough height?  We also have the optional TemboTusk Riser Blocks that will add   2.25” and 3.25” to any measurement listed above.  See the images for the Riser blocks in the photos.  The blocks can be purchased through the drop down menu.    The DIY Slide will ship in the lowest setting.  You can adjust to the height needed with simple tools.   Don't forget the TemboTusk Fridge Straps!

The Docking Station is an option for those who do not want to leave their Jumbo Front Pull Flat Slide in their vehicle all the time.  The Docking Station is permanently installed and allows the Flat Slide to be easily removed or reinstalled without having to deal with hard to reach bolts.  Have two vehicles?  Put a Docking Station in each vehicle for ease of swapping your slide from truck to truck.   The Docking Station has a quarter inch profile which will not interfere with the normal usage of your cargo area when the slide is removed Docking Station comes with bolts for attaching to the slide. (For JUMBO and SUPER JUMBO Front Pull Slides only)

The Docking Station is an option for those who do not want to leave their Standard or Mid-size Front Pull Flat Slide in their vehicle all the time.  The Docking Station is permanently installed and allows the Flat Slide to be easily removed or reinstalled without having to deal with hard to reach bolts.  Have two vehicles?  Put a Docking Station in each vehicle for ease of swapping your slide from truck to truck.   The Docking Station has a quarter inch profile which will not interfere with the normal usage of your cargo area when the slide is removed Docking Station comes with bolts for attaching to the slide. (For Standard and Mid-size Front Pull Slides only)

 Jumbo Front Pull Slide Choose from either a 14 gauge Steel Slide or 1/8" Aluminum Slide The Aluminum slide is stronger than the steel slide and weighs about 33 percent less. There is a cost differance as Aluminum is more expensive than steel.   (Click on the Slide Material drop down menu) Our Extreme Duty Jumbo Flat Slides uses top of the line, locking slide tracks. These are tough, rugged cargo slides.  Outside dimensions:  35.75" wide x 21" deep    (Foot print of slide) Inside pan size: 34" wide x 20" deep   (Area where the fridge or cargo will fit.) See FAQs for additional fridge and slide clearances.  Cutting Board is optional, Cutting board can deploy from either right or left side depending on setup.   Cutting board is 12" x 18".  Fridge will sit 1.5" higher with this option. The Jumbo slides will accommodate fridges 60 to 110 liters  Don't forget to order the Buffalo Straps to hold down the fridge to the slide.

 Jumbo Side Pull Slide Choose from either a 14 gauge Steel Slide or 1/8" Aluminum Slide The Aluminum slide is stronger than the steel slide and weighs about 33 percent less. There is a cost differance as Aluminum is more expensive than steel.   (Click on the Slide Material drop down menu) Our Extreme Duty Jumbo Flat Slides uses top of the line, locking slide tracks. These are tough, rugged cargo slides.  Outside dimensions:  35.75" wide x 21" deep    (Foot print of slide) Inside pan size: 34" wide x 20" deep   (Area where the fridge or cargo will fit.) See FAQs for additional fridge and slide clearances.  Cutting Board is optional, Cutting board can deploy from either right or left side depending on setup.   Cutting board is 12" x 18".  Fridge will sit 1.5" higher with this option. The Jumbo slides will accommodate fridges 60 to 110 liters  Don't forget to order the Buffalo Straps to hold down the fridge to the slide.

Mid-Size Front Pull Slide  18 x 30    Choose from either a 14 gauge Steel Slide or 1/8" Aluminum Slide The Aluminum slide is stronger than the steel slide and weighs about 33 percent less. There is a cost differance as Aluminum is more expensive than steel.   (Click on the Slide Material drop down menu) Perfect for the:                        National Luna 55 ltr & 60 ltr Twin fridges                       SnoMaster 40-60ltr+ fridges                        Dometic CFX-50US   Our Extreme Duty Flat Slides, uses top of the line, locking slide tracks. These are tough, rugged cargo slides.  Outside dimensions:  21.25" wide x 31" deep    (Foot print of slide) Inside pan size: 18.25" wide x 30" deep   (Area where the fridge or cargo will fit.) See FAQs for additional fridge and slide clearances.  Cutting Board is optional, 12 x 18 inches.  Fridge will sit 1.5 inches higher.   Don't forget the Buffalo Straps!

Side Pull Slide  30 x 18    Choose from either a 14 gauge Steel Slide or 1/8" Aluminum Slide The Aluminum slide is stronger than the steel slide and weighs about 33 percent less. There is a cost differance as Aluminum is more expensive than steel.   (Click on the Slide Material drop down menu) Perfect for the:                        National Luna 55 ltr and 60 ltr Twin fridges                       SnoMaster 40-60ltr+ fridges                        Dometic CFX-50US  Our Extreme Duty Flat Slides, uses top of the line, locking slide tracks. These are tough, rugged cargo slides.  Outside dimensions:  32" wide x 19" deep    (Foot print of slide) Inside pan size: 30" wide x 18.25" deep   (Area where the fridge or cargo will fit.) See FAQs for additional fridge and slide clearances.  Cutting Board is optional, 12 x 18 inches.  Fridge will sit 1.5 inches higher.   Don't forget the Buffalo Straps!

 Standard Front Pull SlideChoose from either a 14 gauge Steel Slide or 1/8" Aluminum Slide The Aluminum slide is stronger than the steel slide and weighs about 33 percent less. There is a cost differance as Aluminum is more expensive than steel.   (Click on the Slide Material drop down menu) Our Extreme Duty Flat Slides, uses top of the line, locking slide tracks. These are tough, rugged cargo slides.  Outside dimensions:  18.75" wide x 29" deep    (Foot print of slide) Inside pan size: 17" wide x 28" deep   (Area where the fridge or cargo will fit.) See FAQs for additional fridge and slide clearances.  Cutting Board is optional, 12 x 18 inches.  Fridge will sit 1.5 inches higher.   Don't forget the Buffalo Straps!

 Standard Side Pull SlideChoose from either a 14 gauge Steel Slide or 1/8" Aluminum Slide The Aluminum slide is stronger than the steel slide and weighs about 33 percent less. There is a cost differance as Aluminum is more expensive than steel.   (Click on the Slide Material drop down menu) Our Extreme Duty Flat Slides,  uses top of the line, locking slide tracks. These are tough, rugged cargo slides. Outside Dimensions: 29.75" wide x 19" deep    (Foot print of slide) Inside Pan Size: 28" wide x 17" deep             (Area where the fridge or cargo will fit.)See FAQs for additional fridge and slide clearances.  Cutting Board is optional, Cutting board can deploy from either right or left side depending on setup.   Cutting board is 12" x 18".  Fridge will sit 1.5" higher with this option.  Don't forget the Buffalo Fridge Straps

SUPER JUMBO FRONT PULL FRIDGE SLIDE Choose from either a 14 gauge Steel Slide or 1/8" Aluminum Slide The Aluminum slide is stronger than the steel slide and weighs about 33 percent less. There is a cost differance as Aluminum is more expensive than steel.   (Click on the Slide Material drop down menu) Our Extreme Duty SUPER Jumbo Flat Slides, is made to accommodate fridges 95 liters and above.  Our slides use top of line heavy duty locking and non-locking slide tracks. These are tough, rugged cargo slides.  Outside dimensions:  24.5" wide x 38.75" deep    (Foot print of slide) Inside pan size: 22 5/8" wide x 38 3/8" deep    (Area where the fridge or cargo will fit.) The fridge pan will put the fridge 1" above the bolt down location. See FAQs for additional fridge and slide clearances.Cutting Board is optional, 12 x 18 inches.  Fridge will sit 2.5 inches above the bolt down location. The Super Jumbo slides will accommodate fridges 95 to 110 liters  Example Fridge:  SnoMaster SMDZ-LP96D  92.5ltr    Don't forget to order Tembo Fridge Straps  to hold down the fridge to the slide.   ( Fridge in images is for display only.  Fridge is not included in the purchase.)

SUPER JUMBO SIDE PULL FRIDGE SLIDE   Choose from either a 14 gauge Steel Slide or 1/8" Aluminum Slide The Aluminum slide is stronger than the steel slide and weighs about 33 percent less. There is a cost differance as Aluminum is more expensive than steel.   (Click on the Slide Material drop down menu) Our Extreme Duty SUPER Jumbo Flat Slides, is made to accommodate fridges 95 liters and above.  Our slides use top of line heavy duty locking and non-locking slide tracks. These are tough, rugged cargo slides. Outside dimensions:  40.75" wide x 23" deep    (Foot print of slide) Inside pan size: 38.3/8" wide x 22 5/8" deep    (Area where the fridge or cargo will fit.) The fridge pan will put the fridge 1" above the bolt down location. See FAQs for additional fridge and slide clearances.Cutting Board is optional, 12 x 18 inches.  Fridge will sit 2.5 inches above the bolt down location. The Super Jumbo slides will accommodate fridges 95 to 110 liters  Example Fridge:  SnoMaster SMDZ-LP96D  92.5ltr   Don't forget to order Tembo Fridge Straps  to hold down the fridge to the slide.

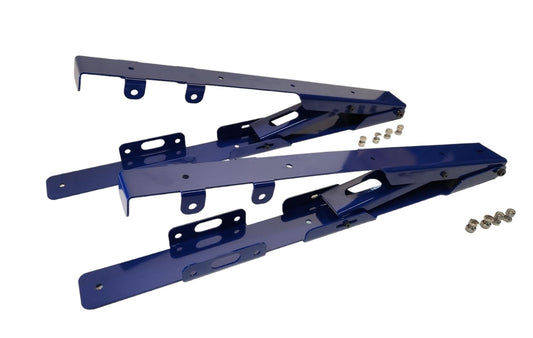

Universal Tilt Slide Adapter The Universal Tilt Slide Adapter is a device to convert an existing flat slide into a tilt slide. The adapter is American made and originally designed for the TemboTusk Fridge Slide, however, by the nature of its design, the Tilt Adapter will fit almost all fridge slide brands.The TemboTusk Universal Tilt Slide Adapter will tilt to a maximum of 28 degrees. The adapter is made from heavy gage steel and will easily support the weight of a slide and camping fridge.The Tilt Adapter can be used to pull a fridge out horizontally or in the tilt configuration. (Detent Pins holds the tilt adapter horizontally. Pull the pins to tilt.)  Installation will require drilling and careful reading of the installation instructions. The install is not terribly difficult; however the details are important.    (Works best with Standard & Mid-Size TemboTusk Front Pull Slides)   FJ-80, Jeep, other camping and warehouse items in photos are not included.  Patent Pending #63461203
